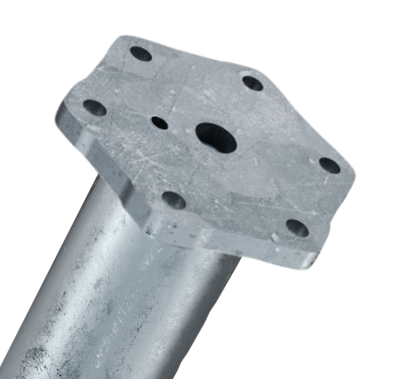

Our VA-series ground screws are extendable. The ground screws can be extended according to the project requirements and were specially developed for projects with high loads.
Series overview
VA-series
VA 76-5_8 UNC
VA 76x5x750 E
VA 76x5x1500 E
VA 76x5x1500 ET
VA 76x5x2100 PT
VA 114-1 UNC
VA 114x5x750 E
VA 114x5x1500 E
VA 114x5x1500 ET
VA 114x5x2100 PT
Nominal length
0 mm
750 mm
1.500 mm
1.500 mm
2.100 mm
0 mm
750 mm
1.500 mm
1.500 mm
2.100 mm
Inner Diameter
76
mm
76
mm
76
mm
76
mm
76
mm
114
mm
114
mm
114
mm
114
mm
114
mm
Weight
3,94 kg
9,07 kg
16,06 kg
20,70 kg
21,50 kg
6,07 kg
13,74 kg
23,85 kg
30,30 kg
31,07 kg
Article number
NA-57656
NA-57655
NA-57654
NA-57653
NA-57652
NA-61146
NA-61145
NA-61144
NA-61143
NA-61142
