G-series

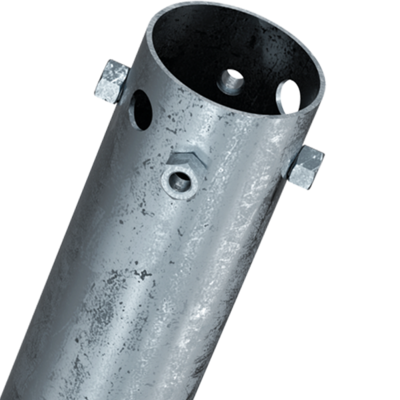

The G-series ground screws are equipped with either one, three or four threaded screws. They are ideally suited for the quick, vertical and permanent installation of masts and fence posts, for example. Optionally, the fence posts, for example, can also be quickly and permanently fixed into place with the special granulate.

Series overview

G 68x550-1xM8
G 68x650-1xM8
G 68x650-3xM8
G 76x800-4xM12
G 89x800-4xM12
G 89x1000-4xM12
G 89x1300-4xM12
G 114x1000-4xM16
G 114x1300-4xM16
G-series
G 68x550-1xM8
G 68x650-1xM8
G 68x650-3xM8
G 76x800-4xM12
G 89x800-4xM12
G 89x1000-4xM12
G 89x1300-4xM12
G 114x1000-4xM16
G 114x1300-4xM16
Nominal length
550 mm
650 mm
650 mm
800 mm
800 mm
1.000 mm
1.300 mm
1.000 mm
1.300 mm
Inner Diameter
68 mm
68 mm
68 mm
88,90 mm
Weight
1,60 kg
1,90 kg
1,90 kg
3,80 kg
5,80 kg
6,10 kg
7,80 kg
8,50 kg
11 kg
Article number
21036
21037
21038
24201
24205
24206
24207
24208
24209
Areas of application
Timber construction and landscaping
