Vi 140
KSF Vi 140 x 6,3 x 2000 PT RAW
Information
| Nominal length | 2.000 mm |
|---|---|
| Inner Diameter | 140 mm |
| Weight | 50,00 kg |
| Article number | A0951 |
Areas of application
Sustainable construction
Processing
- Manufactured from S 355
- Manufactured in accordance with EN 1090-2 EXC 2 with CE and declaration of performance
- Tip made from wear-resistant steel
- Ground thread particularly robust:
- Solid cross-section: 6×25 mm
- Double fillet weld – through-welded
- Extra-long thread section: 800 mm
Description

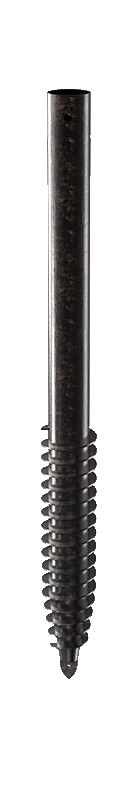

The PT is the basic element of the Vi series that is always required for installation. The tip and thread enable rapid penetration into the ground. Depending on the ground conditions, an extension may be used.
